├── .gitignore
├── __tests__
├── cdktf.json
├── help
├── jest.config.js
├── main.ts
├── node_modules
├── package-lock.json
├── package.json
├── setup.js
└── tsconfig.json

import { Construct } from "constructs";
import { App, TerraformStack, GcsBackend } from "cdktf";
import {
  provider,
  computeNetwork,
  computeSubnetwork,
  computeInstance,
  computeFirewall,
} from "@cdktf/provider-google";

class MyStack extends TerraformStack {
  constructor(scope: Construct, id: string) {
    super(scope, id);

    // Google Provider
    // Terraform のHCLで記述する際と同様にProviderを宣言します。
    // projectの値部分にデプロイ先のGoogle CloudのプロジェクトIDを指定してください。
    new provider.GoogleProvider(this, "google", {
      project: "{project ID を指定}",
      region: "asia-northeast1",
    });

    // TerraformのstateデータをGCSに保存
    // Terraformでは、共同開発する際、Stateファイルをオブジェクトストレージ等に保存する必要があります。
    // GCSバケットを作成してバケット名を指定してください。
    new GcsBackend(this, {
      bucket: "｛バケット名を指定。｝",
      prefix: "cdktf-test",
    });

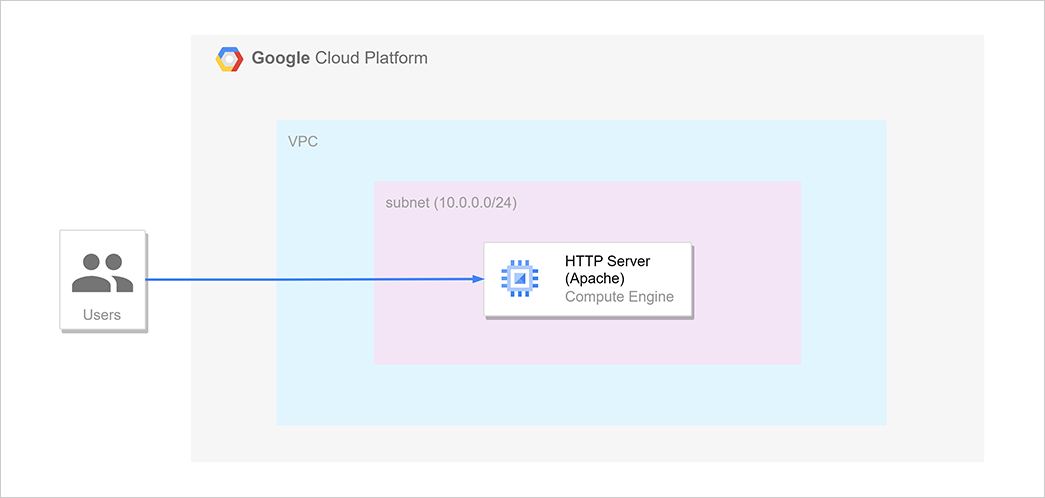

    // VPC
    const vpc1 = new computeNetwork.ComputeNetwork(this, "vpc-01", {
      name: "test-vpc-01",
      autoCreateSubnetworks: false,
    });

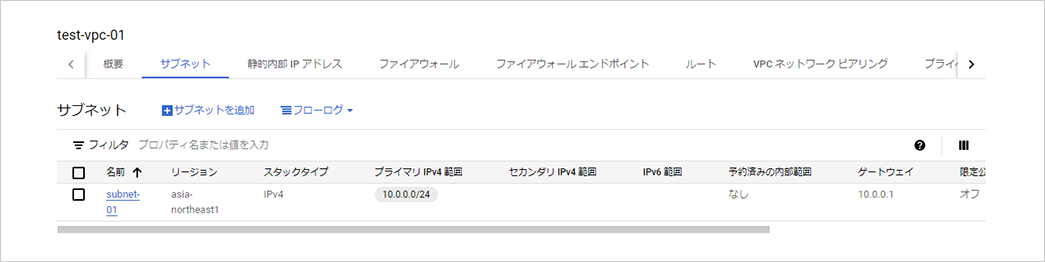

    const subnet1 = new computeSubnetwork.ComputeSubnetwork(this, "subnet-01", {
      name: "subnet-01",
      network: vpc1.selfLink,
      ipCidrRange: "10.0.0.0/24",
    });

    // HTTP Server

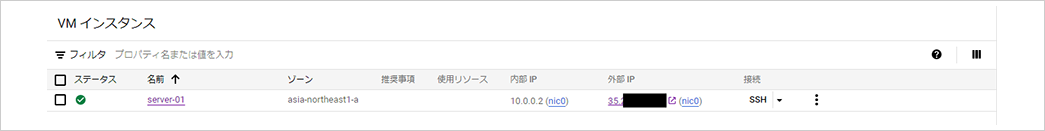

    new computeInstance.ComputeInstance(this, "server-01", {
      networkInterface: [
        {
          subnetwork: subnet1.selfLink,
          accessConfig: [{}],
        },
      ],
      zone: "asia-northeast1-a",
      bootDisk: {
        initializeParams: {
          image: "debian-cloud/debian-11",
        },
      },
      name: "server-01",
      machineType: "f1-micro",
      metadataStartupScript:

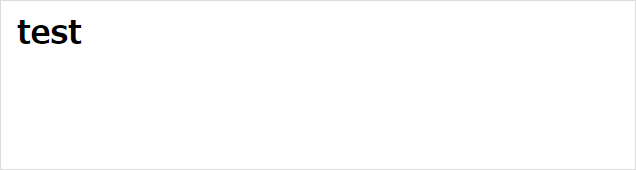

        "sudo apt-get update && sudo apt-get install apache2 -y && echo '
test
' | sudo tee /var/www/html/index.html",
      tags: ["http-server"],
    });

    // firewall
    new computeFirewall.ComputeFirewall(this, "firewall-01", {
      name: `${vpc1.name}-allow-http`,
      network: vpc1.selfLink,
      allow: [
        {
          protocol: "tcp",
          ports: ["80"],
        },
      ],
      targetTags: ["http-server"],
      sourceRanges: ["0.0.0.0/0"],
    });
  }
}

const app = new App();
new MyStack(app, "cdktf-test");
app.synth();
